SKG-314 Series | 250KVA-400KVA



Product : SKG Three-Phase Brushless Synchronous A.C Generators


Type : SKG-314


Output : 250~400(KVA)   200~320(KW)


Voltage : 400/230(V)


Speed : 1500/1800RPM


Frequency : 50/60HZ



Stamford Type of Electric Generator,Class H,IP21







  • Features
  • Specs

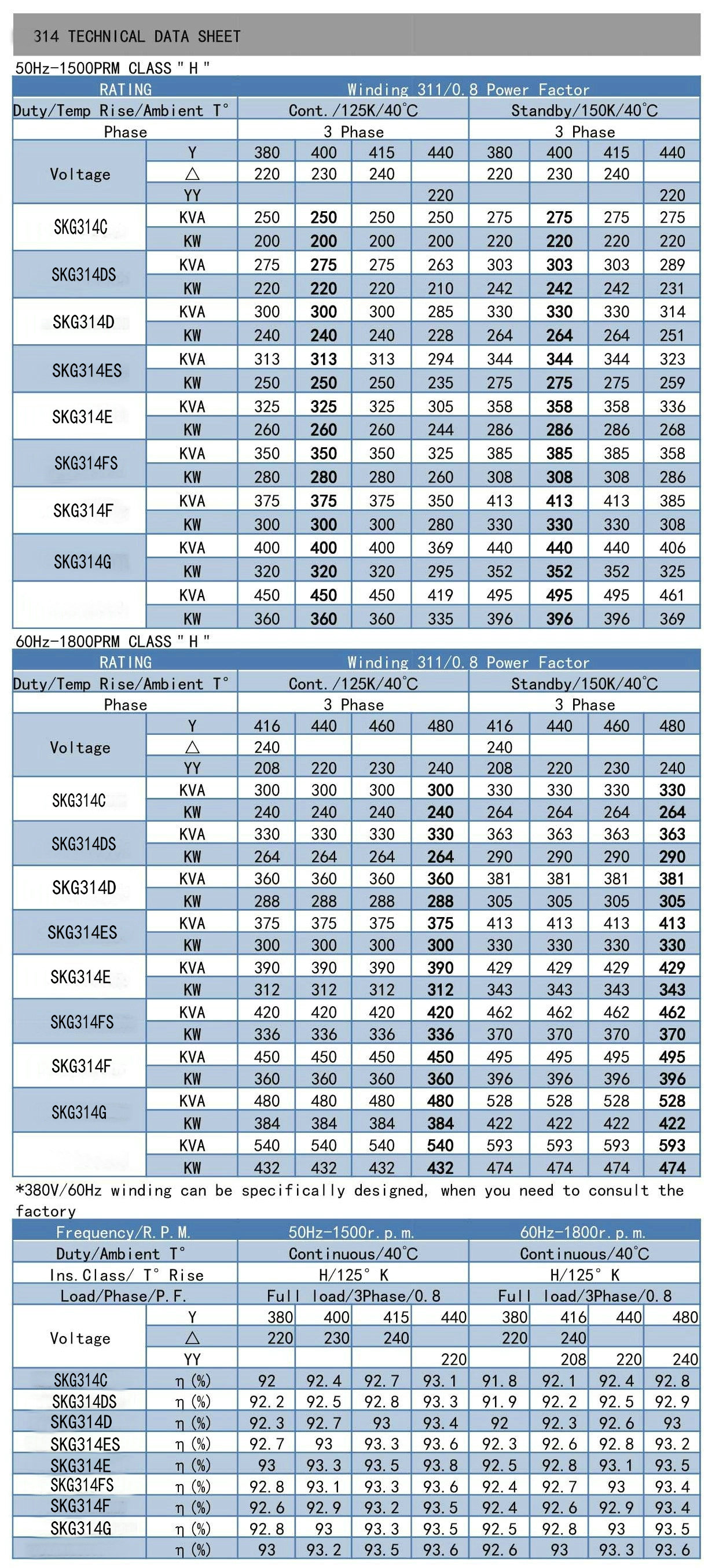

Model

Prime Output (1500rpm/50Hz) 400V

Prime Output (1800rpm/60Hz) 440V

KVA

KW

KVA

KW

SKG-314C

250

200

294

235

SKG-314D

295

236

350

280

SKG-314E

325

260

394

315

SKG-314F

380

304

456

365

SKG-314G 400 320 480

384



Features:

1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire re-connectable winding;
3) 100% famous brand copper wire;
4) 2/3 pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Permanent Magnet Generator(PMG) is available as an option;
7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
8) Easily coupled with power networks or other generator sets,
9) Balance rotor with single or two sealed ball bearings available,
10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
11) Wide range of flange adaptor and single bearing coupling disc,



Parameters:

1) Rated voltage 400V, 110V-690V for option
2) Three phase, single phase for option
3) 50hz/1500rpm and 60hz/1800rpm for option
3) Drip-leak-proof structure: IP22/23 protection class
4) Insulation class H
5) Adjusting rate of stable voltage≤ 1%
6) Transient state voltage≤ -15% - +20%
7) Wave aberration rate of voltage THD≤ 3%
8) Telephone harmony wave factor of telephone THF≤ 2%



Standards&Certifications:

1) KLIN generators are conformity to International standards of IECBS 5000,IEC 34,
2) KLIN generators are Certified of CCC, CE, ISO9001



Solutions:

1) Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Perkins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,
2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, data centers and mining etc



Warranty:

1 years, KLIN Powers DHL new parts for replacement within 3 days upon customer's complaint.
